Navigation: Home > Kubota > M4900

Kubota M4900 Tractors

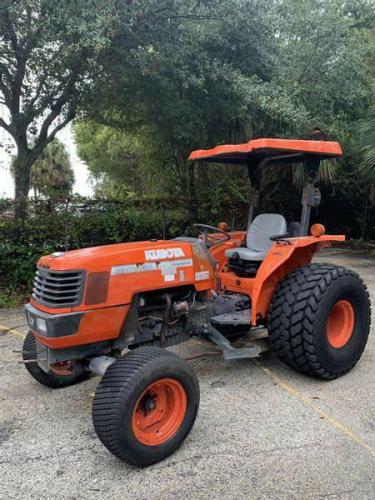

Kubota M4900
Power: 54 hp
Date of manufacture :
2001 - 2008
Production
Manufacturer:Kubota
Type:Utility tractor
Kubota M4900 Power
Engine (gross):54 hp
40.3 kW
Engine (net):49.5 hp
36.9 kW
PTO (claimed):45 hp
33.6 kW
Kubota M4900 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:mechanical wet disc
Cab:Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:8-speed
 8-speed synchronized shuttle
 12-speed
Photos
Kubota M4900 photos...
Hydraulics
Type:open center
Valves:1 to 3
Total flow:17.1 gpm
64.7 lpm
Tractor hitch
Rear Type:II/I
Control:position control and top-link draft sensing
Rear lift (at ends):4200 lbs
1905 kg
Rear lift (at 24"/610mm):3310 lbs
1501 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
Dimensions & Tires
ROPS Wheelbase:78.7 inches
199 cm
Cab Wheelbase:81.7 inches
207 cm
Weight:3748 to 4497 pounds
Front tire:8.3-24
Rear tire:14.9-28
Electrical
Ground:negative
Charging system:alternator
ROPS Charging amps:45
Cab Charging amps:60
Battery CCA:700
Battery volts:12
