Kubota M5091 Tractors

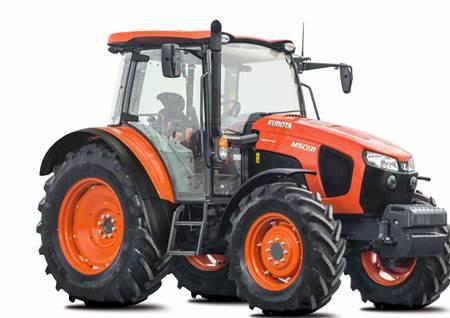

Kubota M5091
Power: 75 hp
Date of manufacture :
2016 - 2020
Production
Manufacturer:Kubota
Type:Utility tractor
Kubota M5091 Power
Engine (gross):75 hp
55.9 kW
Kubota M5091 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulic rear, limited slip front
Steering:power
Brakes:hydraulic wet disc
Transmission:36-speed
Photos
Kubota M5091 photos...
Hydraulics
Valves:2 to 4
Pump flow:16.9 gpm
64.0 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):9039 lbs
4100 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
 540/1000*Optional
Dimensions & Tires
Wheelbase:88.6 inches
225 cm
Weight:7540 lbs
3420 kg
Front tire:480/70R34
Rear tire:360/70R24
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
