LS MT357 Tractors

LS MT357
Power: 57 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Compact Utility tractor
LS MT357 Power
Engine (gross):57 hp
42.5 kW
Hydro PTO (claimed):45.6 hp
34.0 kW
Shuttle PTO (claimed):48.4 hp
36.1 kW
LS MT357 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS. Cab optional.
Transmissions:16-speed synchro shuttle
 hydrostatic

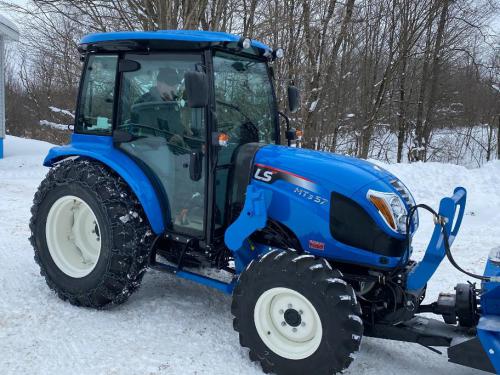

Photos
LS MT357 photos...
Hydraulics
Type:open center
Pressure:2466 psi
170.0 bar
Valves:3
Pump flow:8.2 gpm
31.0 lpm
ROPS shuttle Total flow:12.3 gpm
46.6 lpm
ROPS hydro Total flow:14.3 gpm
54.1 lpm
Cab hydro Total flow:15 gpm
56.8 lpm
ROPS shuttle Steering flow:4.1 gpm
15.5 lpm
ROPS hydro Steering flow:5.5 gpm
20.8 lpm
Cab hydro Steering flow:6.8 gpm
25.7 lpm
Steering press.:2062 psi
142.2 bar
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):2755 lbs
1249 kg
Rear lift (at 24"/610mm):2469 lbs
1119 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2409
Mid PTO:independent*Optional
Mid RPM:2000
Engine RPM:2000@2562
Dimensions & Tires
Wheelbase:73.2 inches
185 cm
Weight:3869 lbs
1754 kg
Front tire:9.5-16
Rear tire:13.6-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:90
Charging volts:12
Battery volts:12
