LS MT7101 Tractors

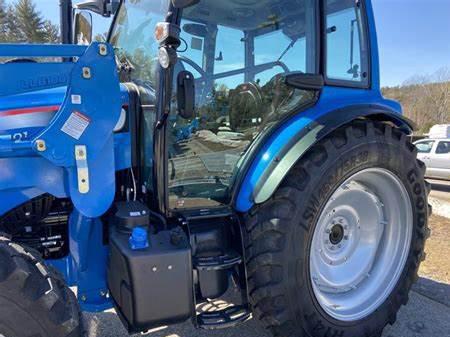

LS MT7101
Power: 100 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Utility tractor
LS MT7101 Power
Engine (gross):100.6 hp
75.0 kW
PTO (claimed):85.5 hp
63.8 kW
LS MT7101 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Cab:Cab standard with air-conditioning.
Transmission:40-speed power shuttle
Hydraulics
Rear valves:2
Front valves:3
Pump flow:15.7 gpm
59.4 lpm
Total flow:22.2 gpm
84.0 lpm
Steering flow:6.5 gpm
24.6 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:8378 lbs
3800 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000
Dimensions & Tires
Wheelbase:90 inches
228 cm
Weight:7714 lbs
3499 kg
Front tire:13.6-24
Rear tire:18.4-34
Electrical
Ground:negative
Battery volts:12
