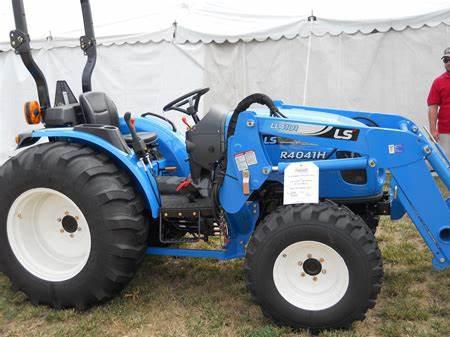

LS R4041 Tractors

LS R4041
Power: 41 hp
Date of manufacture :
2011 - 2021
Production
Manufacturer:LS
Type:Compact Utility tractor
LS R4041 Power
Engine (gross):41 hp
30.6 kW
PTO (claimed):35 hp
26.1 kW
LS R4041 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:16-speed synchro shuttle
Hydraulics
Pump flow:8.2 gpm
31.0 lpm
Total flow:12.3 gpm
46.6 lpm
Steering flow:4.1 gpm
15.5 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift:2755 lbs
1249 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent (optional)
Mid RPM:2000
Dimensions & Tires
Wheelbase:69.2 inches
175 cm
Weight:3813 lbs
1729 kg
Front tire:9.5-16
Rear tire:12.4-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Battery volts:12
