LS R4047 Tractors

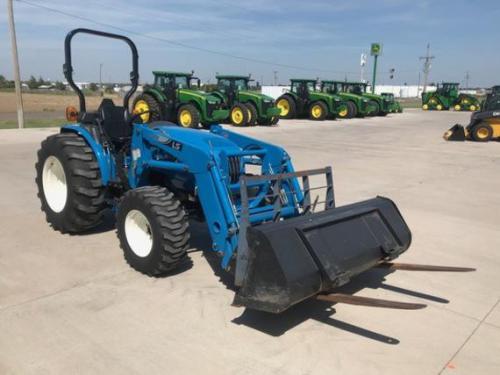

LS R4047
Power: 47 hp
Date of manufacture : 2011 - 2021
Production
Manufacturer:LS
Type:Compact Utility tractor
LS R4047 Power
Engine (gross):47 hp
35.0 kW
PTO (claimed):41 hp
30.6 kW
LS R4047 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:16-speed synchro shuttle
Hydraulics
Pump flow:8.2 gpm
31.0 lpm
Total flow:12.3 gpm
46.6 lpm
Steering flow:4.1 gpm
15.5 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift:2755 lbs
1249 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent (optional)
Mid RPM:2000
Dimensions & Tires
Wheelbase:69.2 inches
175 cm
Weight:3813 lbs
1729 kg
Front tire:9.5-16
Rear tire:13.6-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Battery volts:12
