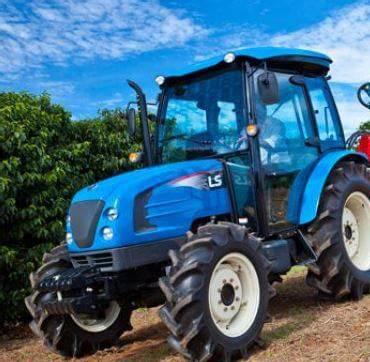

LS U50 Tractors

LS U50
Power: 47 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Utility tractor
LS U50 Power
Engine:47 hp
35.0 kW
PTO (claimed):41.3 hp
30.8 kW
LS U50 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Cab:ROPS. Cab optional.
Transmissions:16-speed synchronized shuttle
 32-speed synchronized shuttle creeper
Hydraulics
Rear valves:2
Front valves:2
Pump flow:9.1 gpm
34.4 lpm
Total flow:13.8 gpm
52.2 lpm
Steering flow:4.7 gpm
17.8 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000
Dimensions & Tires
Wheelbase:76 inches
193 cm
Weight:4303 to 4839 pounds
Front tire:9.5-20
Rear tire:13.6-28
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
