Navigation: Home > LS > U6020

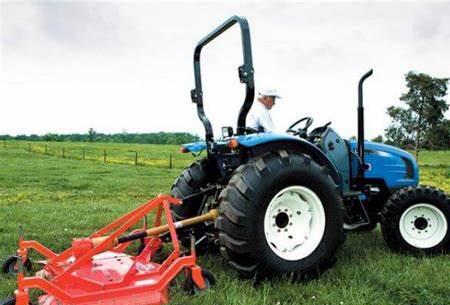

LS U6020 Tractors

LS U6020
Power: 57 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Utility tractor
LS U6020 Power
Engine:57 hp
42.5 kW
PTO (claimed):50 hp
37.3 kW
LS U6020 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Cab:ROPS. Cab optional.
Transmission:16-speed synchronized shuttle
Hydraulics
Rear valves:2
Front valves:2
Pump flow:9.1 gpm
34.4 lpm
Total flow:13.8 gpm
52.2 lpm
Steering flow:4.7 gpm
17.8 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000
Dimensions & Tires
Wheelbase:80.6 inches
204 cm
Weight:4773 to 5225 pounds
Front tire:11.2-20
Rear tire:14.9-28
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
