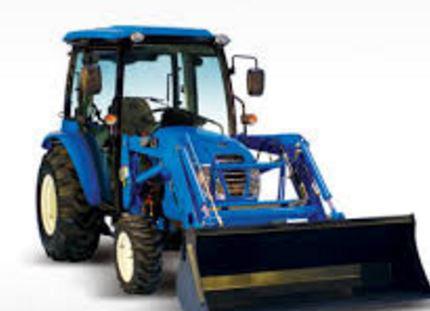

LS XR45 Tractors

LS XR45
Power: 43 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Compact Utility tractor
LS XR45 Power
Engine:43 hp
32.1 kW
Gear PTO (claimed):35.1 hp
26.2 kW
Hydro PTO (claimed):33.4 hp
24.9 kW
LS XR45 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Cab:Cab standard.
Transmissions:16-speed synchronized shuttle
 hydrostatic
Hydraulics
Rear valves:1 or 2
Front valves:2
Pump flow:8.2 gpm
31.0 lpm
Gear Total flow:12.4 gpm
46.9 lpm
Hydro Total flow:13.7 gpm
51.9 lpm
Gear Steering flow:4.2 gpm
15.9 lpm
Hydro Steering flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift:2756 lbs
1250 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000
Mid PTO:independent*Optional
Mid RPM:2000
Dimensions & Tires
Wheelbase:66.5 inches
168 cm
Weight:4251 lbs
1928 kg
Front tire:7-14
Rear tire:11.2-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
