LS XU5055 Tractors

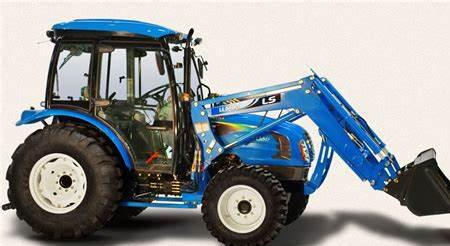

LS XU5055
Power: 55 hp
Date of manufacture :
2013 - 2016
Production
Manufacturer:LS
Type:Utility tractor
LS XU5055 Power
Engine (gross):55 hp
41.0 kW
PTO (claimed):46.5 hp
34.7 kW
LS XU5055 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.
Transmission:16-speed synchro shuttle
Hydraulics
Pump flow:10.5 gpm
39.7 lpm
Total flow:15.8 gpm
59.8 lpm
Steering flow:5.3 gpm
20.1 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:4079 lbs
1850 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:80.3 inches
203 cm
Weight:4674 to 5121 pounds
Front tire:9.5-20
Rear tire:16.9-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:55
Battery volts:12
