LS XR4155 Tractors

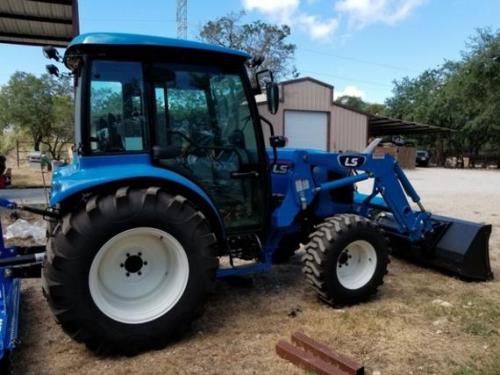

LS XR4155
Power: 55 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Compact Utility tractor
LS XR4155 Power
Engine (gross):55 hp
41.0 kW
Hydro PTO (claimed):44 hp
32.8 kW
Shuttle PTO (claimed):47.3 hp
35.3 kW
LS XR4155 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS. Cab optional with available air-conditioning.
Transmissions:16-speed synchronized shuttle
 hydrostatic
Hydraulics
Valves:2
Pump flow:8.2 gpm
31.0 lpm
Shuttle Total flow:12.3 gpm
46.6 lpm
Hydro Total flow:13.7 gpm
51.9 lpm
Shuttle Steering flow:4.1 gpm
15.5 lpm
Hydro Steering flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):2755 lbs
1249 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid RPM:2000
Dimensions & Tires
Wheelbase:73.2 inches
185 cm
Weight:3869 to 4446 pounds
Front tire:9.5-16
Rear tire:13.6-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:70
Charging volts:12
Battery volts:12
