Navigation: Home > Leyland > 285

Leyland 285 Tractors

Leyland 285
Power: 85 hp
Date of manufacture :
1972 - 1980
Production
Manufacturer:Leyland
Type:Row-Crop tractor
Factory:Bathgate, Scotland
Variants
285:2WD
485:4WD
Leyland 285 Power
Engine:85 hp
63.4 kW
PTO (claimed):75 hp
55.9 kW
Leyland 285 Engine
Mechanical
Chassis:4x2 2WD
Final drives:planetary
Differential lock:mechanical rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard. Insulated cab with heat after 1976. Open station available.
Transmissions:10-speed gear
 9-speed synchromesh

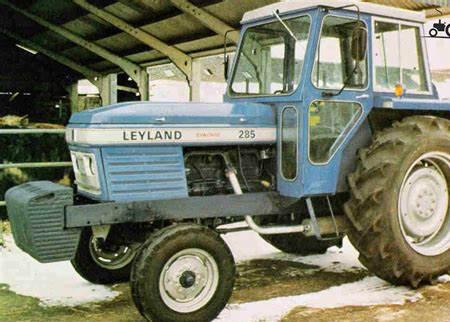

Photos
Leyland 285 photos...
Hydraulics
Type:open center
Pressure:2600 psi
179.3 bar
Pump flow:11 gpm
41.6 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):6000 lbs
2721 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Weight:8000 lbs
3628 kg
Front tire:7.50x16
Rear tire:14.00x34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:34
Battery volts:12
Battery AH:128
