Navigation: Home > Leyland > 384

Leyland 384 Tractors

Leyland 384
Power: 70 hp
Date of manufacture :
1969 - 1972
Production
Manufacturer:Leyland
Leyland 384 Power
Engine (gross):75 hp
55.9 kW
PTO (claimed):56 hp
41.8 kW (540 RPM)
 62 hp
46.2 kW (max)
Leyland 384 Engine
Mechanical
Chassis:4x2 2WD
Final drives:spur gear
Steering:manual
Brakes:mechanical dry disc
Cab:Open operator station. Cab optional.
Transmission:10-speed

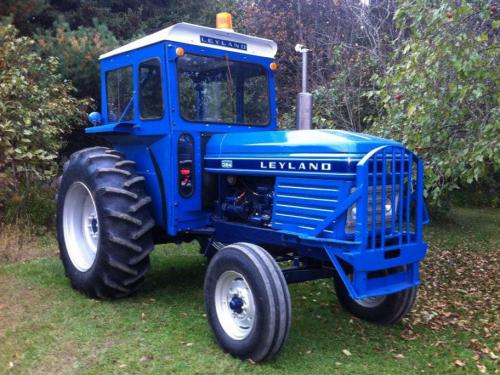

Photos
Leyland 384 photos...
Capacity
Fuel:18 gal
68.1 L
Hydraulic system:14.9 gal
56.4 L
Hydraulics
Type:open center
Capacity:14.9 gal
56.4 L
Pump flow:7.8 gpm
29.5 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift:4924 lbs
2233 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@1813
Dimensions & Tires
Wheelbase:80 inches
203 cm
Weight:5600 lbs
2540 kg
Front tire:7.50-16
Rear tire:13.6/12-36
Full dimensions and tires ...
Electrical
Charging system:generator
Charging amps:18
Battery volts:12
Battery AH:120
