Leyland 470 Tractors

Leyland 470
Power: 70 hp
Date of manufacture :
1973 - 1976
Production
Manufacturer:Leyland
Type:Utility tractor
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power assist
Brakes:mechanical dry disc
Cab:Safety cab standard.
Transmission:10-speed gear
Photos

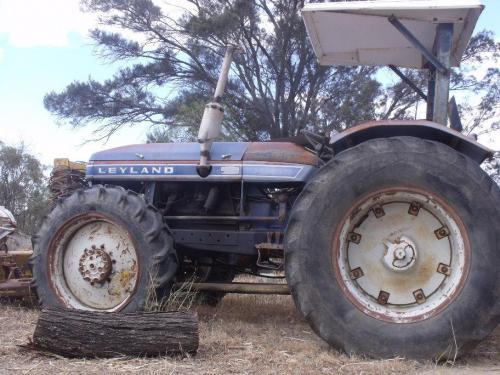

Leyland 470 photos...
Hydraulics
Type:open center
Pump flow:7.9 gpm
29.9 lpm
Tractor hitch
Rear Type:II/I
Control:position and top-link draft control
Rear lift:4000 lbs
1814 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:82.5 inches
209 cm
Weight:7014 lbs
3181 kg
Front tire:10x24
Rear tire:12x38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:34
Battery volts:12
Battery AH:128
