| Production |
| Manufacturer: | Mahindra
|
| Type: | Sub-Compact Utility tractor
|
| Original price: | $12,690 (2012 )
|

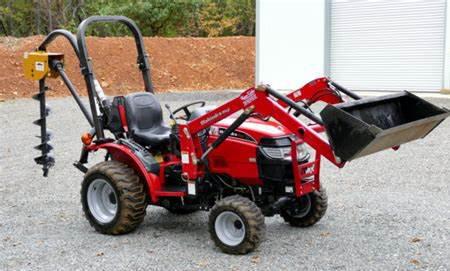

| Mahindra Max 22 Power |
| Engine: | 22 hp
16.4 kW
|
| PTO (claimed): | 16 hp
11.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS.
|
| Transmission: | hydrostatic
|
| Hydraulics |
| Type: | open center
|
| Valves: | 1 (optional)
|
| Pump flow: | 4.6 gpm
17.4 lpm
|
| Steering flow: | 2.7 gpm
10.2 lpm
|
| Tractor hitch |
| Rear Type: | 1
|
| Control: | position control
|
| Rear lift: | 1,400 lbs
635 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540
|
| Engine RPM: | 540@2376
|
| Mid PTO: | optional
|
| Mid RPM: | 2000
|
| Engine RPM: | 2000@2556
|
| Dimensions & Tires |
| Weight: | 1,693 lbs
767 kg
|
| Front tire: | 6x12
|
| Rear tire: | 9.5x16
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 50
|
| Battery volts: | 12
|
| Battery AH: | 46
|
|
