Mahindra Max 24 Tractors

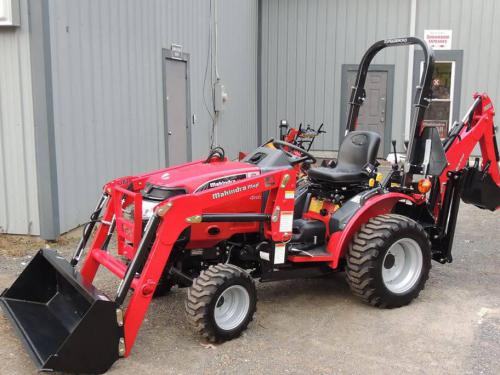

Mahindra Max 24
Power: 24 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Mahindra
Type:Compact Utility tractor
Mahindra Max 24 Power
Engine:24.4 hp
18.2 kW
PTO (claimed):19.5 hp
14.5 kW
Mahindra Max 24 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmission:hydrostatic
Hydraulics
Type:open center
Rear valves:1*Optional
Pump flow:4.6 gpm
17.4 lpm
Steering flow:2.7 gpm
10.2 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift:1400 lbs
635 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
Engine RPM:540@2376
Mid RPM:2000
Engine RPM:2000@2556
Dimensions & Tires
Weight:1693 lbs
767 kg
Front tire:6x12
Rear tire:9.5x16
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Battery volts:12
Battery AH:46
