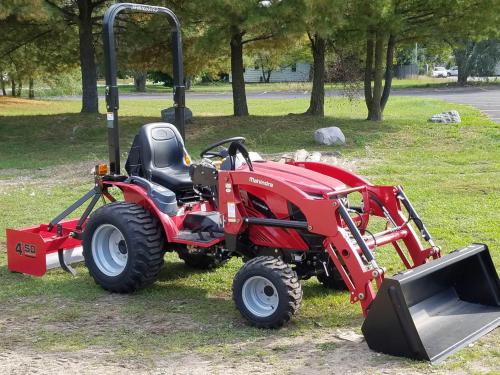

Mahindra eMax 22 Tractors
 |
|
Power: 22 hp
Date of manufacture : 2014 - 2016 |
| Production |
| Manufacturer: | Mahindra
|
| Type: | Sub-Compact Utility tractor
|
| Original price: | $14,840 (2016 )
|
| Mahindra eMax 22 Power |
| Engine: | 22 hp
16.4 kW
|
| PTO (claimed): | 16.9 hp
12.6 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS.
|
| Transmissions: | 6-speed gear
|
| | hydrostatic
|
| Photos |
| | Mahindra eMax 22 photos... |
| Hydraulics |
| Type: | open center
|
| Rear valves: | 1*Optional
|
| Pump flow: | 4.5 gpm
17.0 lpm
|
| Steering flow: | 2.6 gpm
9.8 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift: | 1320 lbs
598 kg
|
| Power Take-off (PTO) |
| Gear Rear PTO: | live
|
| Hydro Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2893
|
| Mid RPM: | 2000
|
| Engine RPM: | 2000@2875
|
| Dimensions & Tires |
| Weight: | 1540 lbs
698 kg
|
| Front tire: | 6x12
|
| Rear tire: | 9.5x16
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 50
|
| Battery volts: | 12
|
|
