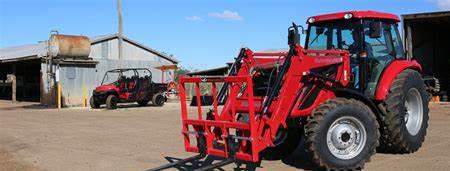

Mahindra mForce 100 Tractors
|
|
Power: 100 hp
Date of manufacture : 2013 - 2015 |
Production |
Distributor: | Mahindra
|
Manufacturer: | TYM
|
Type: | Utility tractor
|
Variants |
100S: | shuttle
|
100P: | power shift
|
Mahindra mForce 100 Power |
Engine: | 100.4 hp 74.9 kW
|
PTO (claimed): | 88.2 hp 65.8 kW
|
Mahindra mForce 100 Engine |
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | wet disc
|
Cab: | Cab standard with air-conditioning.
|
Transmissions: | 24-speed power shift
|
| 12-speed power shuttle
|
Hydraulics |
Type: | open center
|
Rear valves: | 1 to 3
|
Pump flow: | 15.6 gpm 59.0 lpm
|
Steering flow: | 7.1 gpm 26.9 lpm
|
Tractor hitch |
Rear Type: | II
|
Control: | position and draftcontrol
|
Rear lift: | 6856 lbs 3109 kg
|
Rear Arms: | telescopic stabilizers
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Clutch: | electro-hydraulic
|
Rear RPM: | 540/750/1000
|
Engine RPM: | 540@2220 750@2208 1000@2227
|
Dimensions & Tires |
Weight: | 8124 lbs 3685 kg
|
Front tire: | 13.6R24
|
Rear tire: | 18.4R34
|
Electrical |
Charging system: | alternator
|
Charging amps: | 85
|
Charging volts: | 12
|
Battery volts: | 12
|
Battery AH: | 110
|
|
