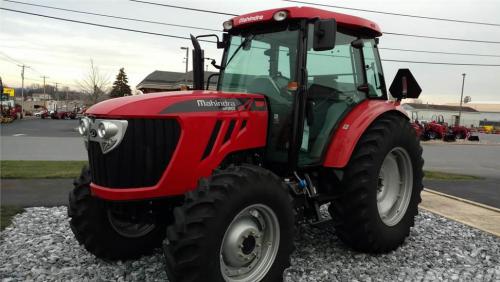

Mahindra mForce 105 Tractors
|
|
Power: 105 hp
Date of manufacture : 0000 - 0000 |
Production |
Manufacturer: | Mahindra
|
Type: | Utility tractor
|
Original price: | $63,438 (2016 shuttle )
|
Original price: | $69,125 (2016 power shift )
|
Variants |
105S: | shuttle
|
105P: | power shift
|
Mahindra mForce 105 Power |
Engine: | 105 hp 78.3 kW
|
PTO (claimed): | 95.5 hp 71.2 kW
|
Mahindra mForce 105 Engine |
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | wet disc
|
Cab: | Cab standard with air-conditioning.
|
Transmissions: | 24-speed power shift
|
| 12-speed power shuttle
|
Hydraulics |
Type: | open center
|
Rear valves: | 2 to 4
|
Pump flow: | 15.6 gpm 59.0 lpm
|
Steering flow: | 7.1 gpm 26.9 lpm
|
Tractor hitch |
Rear Type: | II
|
Control: | position and draftcontrol
|
Rear lift: | 6860 lbs 3111 kg
|
Rear Arms: | telescopic stabilizers
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Clutch: | electro-hydraulic
|
Rear RPM: | 540/750/1000
|
Engine RPM: | 540@2220 750@2208 1000@2227
|
Dimensions & Tires |
Weight: | 8666 lbs 3930 kg
|
Front tire: | 13.6R24
|
Rear tire: | 18.4R34
|
Electrical |
Charging system: | alternator
|
Charging amps: | 85
|
Charging volts: | 12
|
Battery volts: | 12
|
Battery AH: | 110
|
|
