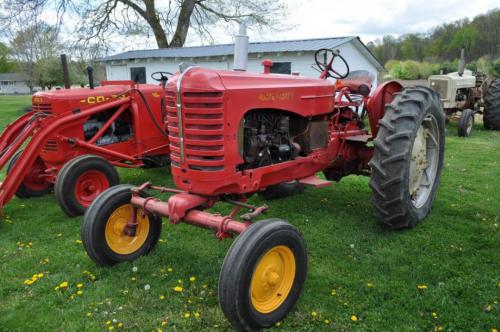

Massey-Harris 333 Tractors
 |
|
Power: 41 hp[P]
Date of manufacture : 1956 - 1958 |
| Production |
| Manufacturer: | Massey-Harris
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Total built: | 2,748
|
| Original price: | $3,000 (1958)
|
| Massey-Harris 333 Power |
| Drawbar (claimed): | 27 hp
20.1 kW
|
| PTO (claimed): | 37 hp
27.6 kW
|
| Drawbar (tested): | 37.26 hp
27.8 kW
|
| Belt (tested): | 41.89 hp
31.2 kW
|
| Massey-Harris 333 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| | power optional
|
| Brakes: | mechanical expanding shoe
|
| Cab: | Open operator station.
|
| Transmission: | 10-speed gear
|
| Photos |
| | Massey-Harris 333 photos... |
| Tractor hitch |
| Rear Type: | I
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 88.1 inches
223 cm
|
| Weight: | 6,000 lbs
2721 kg
|
| Front tire: | 6.50-16
|
| Rear tire: | 11-38
|
| Full dimensions and tires ... |
| 333 Serial Numbers |
| Location: | Right side of tractor frame.
|
photo of 333 serial number
|
| Belt Pulley |
| Diameter: | 13.5 inches
34 cm
|
| Width: | 6.5 inches
16 cm
|
| RPM: | 876
|
| Speed: | 3,097 ft/min
943.97 meters/min
|
|
