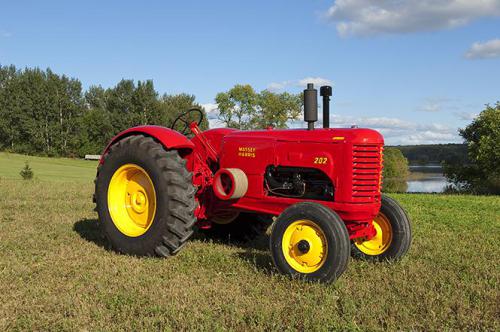

Massey-Harris 202 Tractors
 |
|
Power: 41 hp[P]
Date of manufacture : 1940 - 1942 |
| Production |
| Manufacturer: | Massey-Harris
|
| Type: | Standard-tread tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Total built: | 223
|
| Original price: | $1,900 (1942 )
|
| Variants |
| 201: | Chrysler 4.1L gas
|
| 202: | Continental 4.8L gas
|
| 203: | Continental 5.4L distillate
|
| 203G: | Continental 5.4L gas
|
| Massey-Harris 202 Power |
| PTO (claimed): | 37 hp
27.6 kW
|
| Plows: | 5
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed gear
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Weight: | 6700 lbs
3039 kg
|
| Full dimensions and tires ... |
| 202 Serial Numbers |
| 1940: | 95001
|
| 1941: | 95002
|
| 1942: | 95182
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 13.5 inches
34 cm
|
| Width: | 8 inches
20 cm
|
| RPM: | 839
|
| Speed: | 2962 ft/min
902.82 meters/min
|
|
