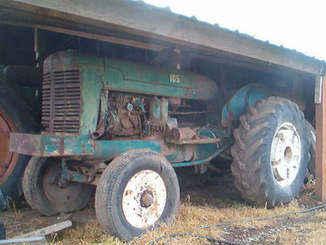

McCormick-Deering ODS-6 Tractors
 |
|
Power: 40 hp[B]
Date of manufacture : 1947 - 1953 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Orchard/Vineyard tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 522
|
| Variants |
| W-6: | standard
|
| O-6: | orchard
|
| OS-6: | orchard without full sheet metal
|
| ODS-6: | diesel OS-6
|
| I-6: | industrial
|
| ID-6: | diesel industrial
|
| McCormick-Deering ODS-6 Power |
| Drawbar (claimed): | 31.5 hp
23.5 kW
|
| Belt (claimed): | 36 hp
26.8 kW
|
| McCormick-Deering ODS-6 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed gear
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 76.25 inches
193 cm
|
| Weight: | 5385 lbs
2442 kg
|
| Front tire: | 6.00-16
|
| Rear tire: | 13-26
|
| Full dimensions and tires ... |
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| Width: | 7.5 inches
19 cm
|
| RPM: | 899
|
| Speed: | 2588 ft/min
788.82 meters/min
|
|
