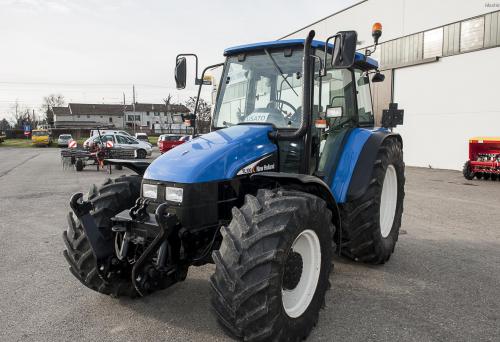

New Holland TL100 Tractors
 |
|
Power: 95 hp
Date of manufacture : 1999 - 2004 |
| Production |
| Manufacturer: | New Holland
|
| Type: | Utility tractor
|
| Factory: | Jesi, Italy
|
| New Holland TL100 Power |
| Engine: | 95 hp
70.8 kW
|
| PTO (claimed): | 82 hp
61.1 kW
|
| Drawbar (tested): | 55.8 hp
41.6 kW
|
| PTO (tested): | 83.1 hp
62.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Two-post folding ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 24-speed
|
| | 20-speed
|
| Hydraulics |
| Type: | closed
|
| Valves: | 2 or 3
|
| Pump flow: | 14.5 gpm
54.9 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 7900 lbs
3583 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 92.2 inches
234 cm (2WD)
|
| | 91.1 inches
231 cm (4WD)
|
| Weight: | 6834 to 8795 pounds
|
| Front tire: | 10.00-16
|
| 2WD Rear tire: | 600/65R-34
|
| Full dimensions and tires ... |
| TL100 Serial Numbers |
| Location: | Serial number stamped on the front axle support under the tractor hood.
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
