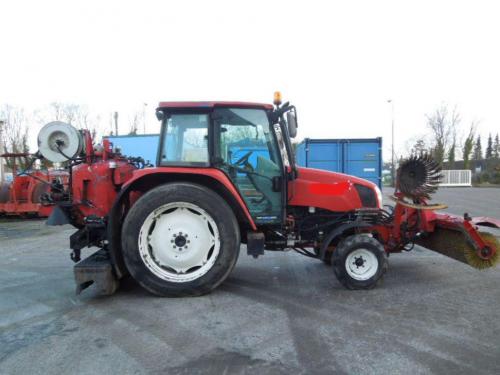

New Holland TL5050 Tractors
 |
|
Power: 90 hp
Date of manufacture : 2007 - 2011 |
| Production |
| Manufacturer: | New Holland
|
| Type: | Utility tractor
|
| Factory: | Shanghai, China
|
| New Holland TL5050 Power |
| Engine: | 90 hp
67.1 kW
|
| PTO (claimed): | 80 hp
59.7 kW
|
| New Holland TL5050 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Open operator station. Optional ROPS. Optional cab with heat and air-conditioning.
|
| Transmission: | 12-speed
|
| Hydraulics |
| Valves: | 1 to 3
|
| Pump flow: | 11.9 gpm
45.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at ends): | 7,368 lbs
3342 kg
|
| Rear lift (at 24"/610mm): | 4,497 lbs
2039 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Engine RPM: | 540@2199
|
| Dimensions & Tires |
| 2WD Wheelbase: | 96 inches
243 cm
|
| 4WD Wheelbase: | 94.9 inches
241 cm
|
| Weight: | 7022 to 8488 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 16.9-34 (2WD)
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
| Battery AH: | 120
|
|
