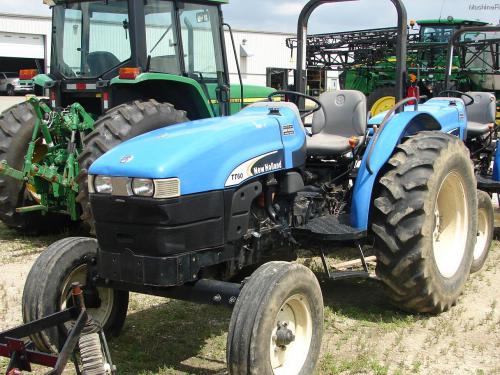

New Holland TT60A Tractors
 |
|
Power: 56 hp
Date of manufacture : 2007 - 2008 |
| Production |
| Manufacturer: | New Holland
|
| Type: | Compact Utility tractor
|
| Factory: | Dublin, Georgia, USA
|
| New Holland TT60A Power |
| Engine (gross): | 56 hp
41.8 kW
|
| PTO (claimed): | 47 hp
35.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | bull gear
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Platform with two-post folding ROPS.
|
| Transmission: | 8-speed partially synchronized
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2755 psi
190.0 bar
|
| Valves: | 0 to 2
|
| Pump flow: | 10.8 gpm
40.9 lpm
|
| Total flow: | 19.3 gpm
73.1 lpm
|
| Steering flow: | 8.5 gpm
32.2 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position control
|
| | top-link draft control*Optional
|
| Rear lift (at ends): | 2930 lbs
1329 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | mechanical dry disc
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@1967
|
| Dimensions & Tires |
| Weight: | 4540 to 4989 pounds
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 45
|
| Battery CCA: | 800
|
| Battery volts: | 12
|
|
