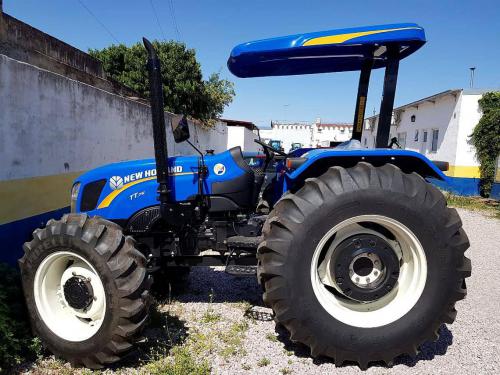

New Holland TT75 Tractors
 |
|
Power: 74 hp
Date of manufacture : 2002 - 2008 |
| Production |
| Manufacturer: | New Holland
|
| Type: | Utility tractor
|
| Factory: | India
|
| New Holland TT75 Power |
| Engine: | 74.9 hp
55.9 kW
|
| PTO (claimed): | 59 hp
44.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | spur gear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS.
|
| Transmission: | 8-speed
|
| Hydraulics |
| Type: | open center
|
| Pump flow: | 8.6 gpm
32.6 lpm
|
| Total flow: | 15.6 gpm
59.0 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 4751 lbs
2155 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@1967
|
| Dimensions & Tires |
| 2WD Wheelbase: | 86.2 inches
218 cm
|
| 4WD Wheelbase: | 85 inches
215 cm
|
| Weight: | 5,470 lbs
2481 kg
|
| Front tire: | 7.50-16
|
| Rear tire: | 16.9-30
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 23
|
| Battery volts: | 12
|
| Battery AH: | 100
|
|
