Nuffield 3/45 Tractors

Nuffield 3/45
Power: 45 hp
Date of manufacture :
1967 - 1969
Production
Manufacturer:Nuffield
Factory:Bathgate, Scotland
Nuffield 3/45 Power
Engine:45 hp
33.6 kW
PTO (claimed):39 hp
29.1 kW
Nuffield 3/45 Engine
Mechanical
Chassis:4x2 2WD
Final drives:spur gear
Steering:manual
Steering:power*Optional
Brakes:mechanical disc
Cab:Open operator station.
Transmission:10-speed gear
Photos

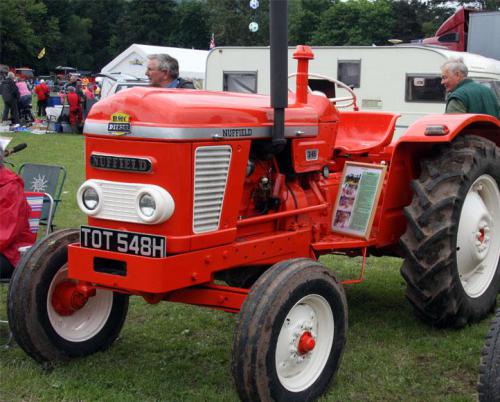

Nuffield 3/45 photos...
Tractor hitch
Rear Type:II/I
Control:directional control and top-link draft sensing
Power Take-off (PTO)
Rear PTO:transmission
 independent*Optional
Rear RPM:540 (1.375)
Engine RPM:540@1800
Dimensions & Tires
Wheelbase:74.8 inches
189 cm
Weight:4460 lbs
2023 kg
Front tire:5.50-16
Rear tire:11.00-28
Full dimensions and tires ...
Belt Pulley
Diameter:9 inches
22 cm
Width:6.5 inches
16 cm
Speed:3011 ft/min
917.75 meters/min (low ratio)
 3821 ft/min
1164.64 meters/min (high ratio)
