Renault 113-12 TX Tractors

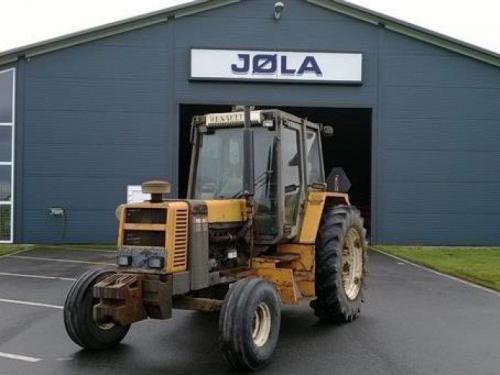

Renault 113-12 TX
Power: 101 hp
Date of manufacture :
1981 - 1986
Production
Manufacturer:Renault
Type:Row-Crop tractor
Variants
113-14:4WD
Renault 113-12 TX Power
Engine:101.9 hp
76.0 kW
PTO (claimed):97 hp
72.3 kW
Renault 113-12 TX Engine
Mechanical
Chassis:4x2 2WD
Steering:power
Brakes:hydraulic dry disc
Cab:Cab standard with heat.
Transmissions:12-speed synchronized
 16-speed creeper
Hydraulics
Pressure:2611 psi
180.0 bar
Total flow:11 gpm
41.6 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:10296 lbs
4670 kg
 11668 lbs
5292 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Clutch:organic
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:107.9 inches
274 cm
Weight:11510 lbs
5220 kg
Front tire:16.9-28
Rear tire:18.4-38
Full dimensions and tires ...
