Renault 133-14 TX Tractors

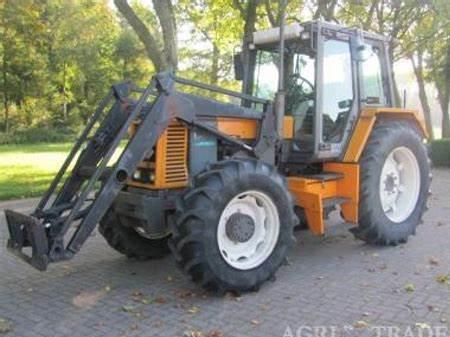

Renault 133-14 TX
Power: 120 hp
Date of manufacture :
1981 - 1986
Production
Manufacturer:Renault
Type:Row-Crop tractor
Renault 133-14 TX Power
Engine:120.7 hp
90.0 kW
PTO (claimed):115.3 hp
86.0 kW
Renault 133-14 TX Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic dry disc
Cab:Cab standard with heat.
Transmissions:12-speed synchronized
 16-speed creeper
Hydraulics
Pressure:2611 psi
180.0 bar
Total flow:11 gpm
41.6 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:10296 lbs
4670 kg
 11668 lbs
5292 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Clutch:organic
Rear RPM:540/1000 (1.375)
Engine RPM:644@2350
1105@2350
Dimensions & Tires
Wheelbase:107.9 inches
274 cm
Weight:11718 lbs
5315 kg
Front tire:16.9-28
Rear tire:18.4-38
Full dimensions and tires ...
Electrical
Charging amps:50
Batteries:2
Battery volts:12
Battery AH:150
