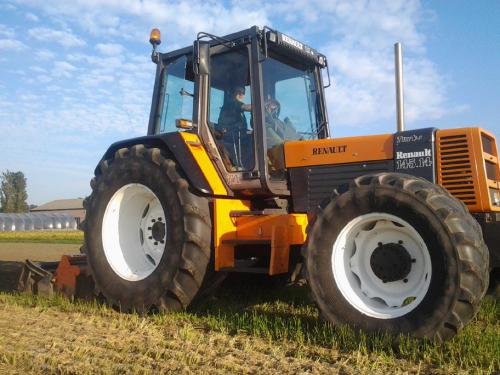

Renault 145-14 TX Tractors
 |
|
Power: 132 hp
Date of manufacture : 1981 - 1986 |
| Production |
| Manufacturer: | Renault
|
| Type: | Row-Crop tractor
|
| Renault 145-14 TX Power |
| Engine: | 132.8 hp
99.0 kW
|
| PTO (claimed): | 127.5 hp
95.1 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic dry disc
|
| Cab: | Cab standard with heat.
|
| Transmissions: | 12-speed synchronized
|
| | 16-speed creeper
|
| Photos |
| | Renault 145-14 TX photos... |
| Hydraulics |
| Pressure: | 2611 psi
180.0 bar
|
| Total flow: | 11 gpm
41.6 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 11668 lbs
5292 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | cerametallic
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 644@2350
1105@2350
|
| Dimensions & Tires |
| Wheelbase: | 107.9 inches
274 cm
|
| Weight: | 13360 lbs
6060 kg
|
| Front tire: | 16.9-28
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| Electrical |
| Charging amps: | 70
|
| Batteries: | 2
|
| Battery volts: | 12
|
| Battery AH: | 150
|
|
