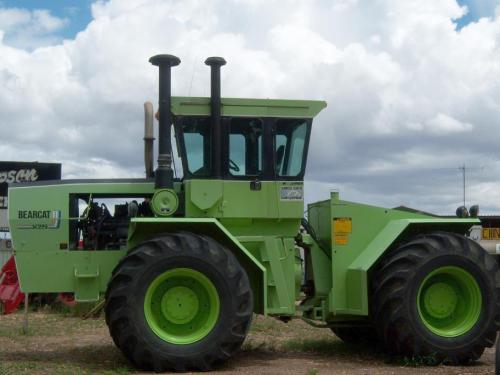

Steiger Bearcat III ST-225 Tractors
|
|
Power: 225 hp
Date of manufacture : 1980 - 1983 |
Production |
Manufacturer: | Steiger
|
Type: | Four-wheel Drive (4WD) tractor
|
Factory: | Fargo, North Dakota, USA
|
Original price: | $66,000 (1983 )
|
Variants |
ST-225: | fixed axle
|
PT-225: | row-crop axle
|
Steiger Bearcat III ST-225 Power |
Engine: | 225 hp 167.8 kW
|
Drawbar (tested): | 184.69 hp 137.7 kW
|
PTO (tested): | 105.69 hp 78.8 kW
|
Steiger Bearcat III ST-225 Engine |
Mechanical |
Chassis: | 4x4 articulated 4WD
|
Final drives: | outboard planetary
|
Steering: | hydrostatic power
|
Brakes: | hydraulic dry disc
|
Cab: | Safari Cab standard with heat and air-conditioning.
|
Transmission: | 20-speed
|
Photos |
| Steiger Bearcat III ST-225 photos... |
Hydraulics |
Type: | open center
|
Pressure: | 2250 psi 155.1 bar
|
Valves: | 3 to 5
|
Pump flow: | 30.8 gpm 116.6 lpm
|
Tractor hitch |
Rear Type: | 3*Optional
|
Dimensions & Tires |
Wheelbase: | 128 inches 325 cm
|
Weight: | 25000 lbs 11340 kg
|
Front tire: | 23.1-34
|
Rear tire: | 23.1-34
|
Full dimensions and tires ... |
Bearcat III ST-225 Serial Numbers |
1980: | 109-00001
|
1981: | 109-00170
|
1982: | 109-01501
|
1983: | 109-02501
|
how to read serial numbers...
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 90
|
Battery volts: | 12
|
|
