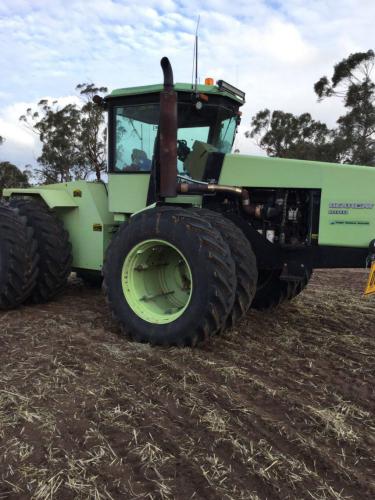

Steiger Bearcat 1000 Tractors
 |
|
Power: 235 hp
Date of manufacture : 1986 - 0000 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $80,600 (1986)
|
| Steiger Bearcat 1000 Power |
| Engine: | 235 hp
175.2 kW
|
| PTO (claimed): | 200 hp
149.1 kW
|
| Drawbar (tested): | 192.82 hp
143.8 kW
|
| PTO (tested): | 218.0 hp
162.6 kW
|
| Steiger Bearcat 1000 Engines |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | inboard planetary
|
| | double-reduction outboard planetary (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 12-speed full power shift
|
| Capacity |
| Fuel: | 170 gal
643.5 L
|
| Hydraulic system: | 18 gal
68.1 L
|
| Hydraulics |
| Type: | closed center load sensing pressure compensating
|
| Capacity: | 18 gal
68.1 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 2 to 4
|
| Pump flow: | 27 gpm
102.2 lpm
|
| Tractor hitch |
| Rear Type: | III (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent (optional)
|
| Rear RPM: | 1000 (1.75)
|
| Dimensions & Tires |
| Wheelbase: | 130 inches
330 cm
|
| Weight: | 2300 lbs
1043 kg
|
| Front tire: | 18.4-38
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 100
|
| Batteries: | 3
|
| Battery CCA: | 625
|
| Battery volts: | 12
|
|
