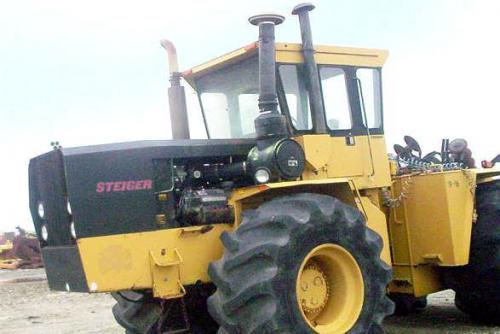

Steiger Panther III PT-350 Tractors
 |
|
Power: 350 hp
Date of manufacture : 1977 - 1981 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $95,000 (1981 )
|
| Steiger Panther III PT-350 Power |
| Engine: | 350 hp
261.0 kW
|
| PTO (claimed): | 57 hp
42.5 kW *540 RPM
|
| | 105 hp
78.3 kW *1000 RPM
|
| Steiger Panther III PT-350 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | hydraulic power
|
| Brakes: | hydraulic disc
|
| Cab: | Safari Cab standard with air-conditioning.
|
| Transmission: | 20-speed constant mesh
|
| Capacity |
| Fuel: | 225 gal
851.6 L
|
| Hydraulic system: | 22 gal
83.3 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 22 gal
83.3 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 4 or 5
|
| Pump flow: | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type: | III*Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent*Optional
|
| Clutch: | hydrostatic-drive
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 132.5 inches
336 cm
|
| Weight: | 29668 lbs
13457 kg
|
| Front tire: | 20.8x34
|
| Rear tire: | 20.8x34
|
| Full dimensions and tires ... |
| Panther III PT-350 Serial Numbers |
| 1977: | 140-00001
|
| 1978: | 140-00023
|
| 1979: | 140-00059
|
| 1980: | 140-00062
|
| 1981: | 140-00075
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 90
|
| Charging volts: | 12
|
| Batteries: | 4
|
| Battery CCA: | 475
|
| Battery volts: | 12
|
|
