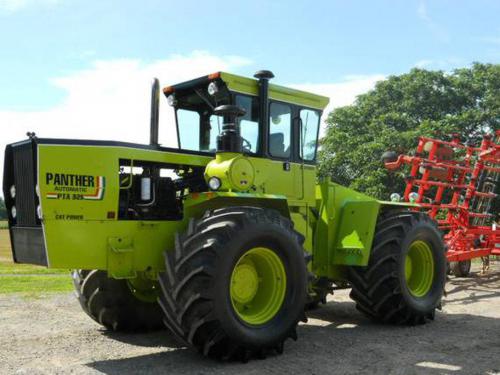

Steiger Panther III PTA-325 Tractors
 |
|
Power: 325 hp
Date of manufacture : 1980 - 1982 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $110,000 (1982 )
|
| Steiger Panther III PTA-325 Power |
| Engine: | 325 hp
242.4 kW
|
| Steiger Panther III PTA-325 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Safari Cab standard with air-conditioning.
|
| Transmission: | 10-speed power shift with torque converter
|
| Photos |
| | Steiger Panther III PTA-325 photos... |
| Capacity |
| Fuel: | 225 gal
851.6 L
|
| Hydraulic system: | 22 gal
83.3 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 22 gal
83.3 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 3 to 5
|
| Pump flow: | 29.3 gpm
110.9 lpm
|
| SCV flow: | 8 gpm
30.3 lpm *Minimum
|
| | 20 gpm
75.7 lpm *Maximum
|
| Tractor hitch |
| Rear Type: | III*Optional
|
| Dimensions & Tires |
| Wheelbase: | 132.5 inches
336 cm
|
| Weight: | 29605 lbs
13428 kg
|
| Front tire: | 23.1x34
|
| Rear tire: | 23.1x34
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | Delco-Remy alternator
|
| Charging amps: | 90
|
| Batteries: | 4
|
| Battery CCA: | 475
|
| Battery volts: | 12
|
|
