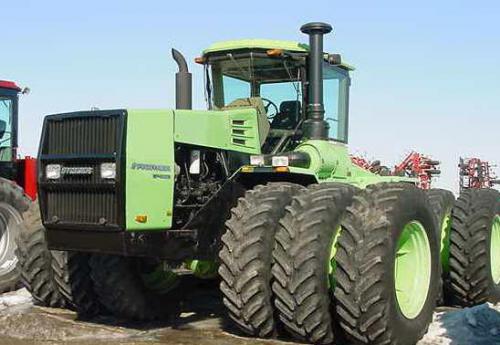

Steiger Panther IV CM-360 Tractors
 |
|
Power: 360 hp
Date of manufacture : 1983 - 1985 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Variants |
| CM360: | Caterpillar engine
|
| KM360: | Cummins engine
|
| Steiger Panther IV CM-360 Power |
| Engine: | 360 hp
268.5 kW
|
| Drawbar (claimed): | 301 hp
224.5 kW
|
| Steiger Panther IV CM-360 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Steiger Safari Cab standard with air-conditioning.
|
| Transmission: | 20-speed Constant mesh 10-speed transmission with 2-speed transfer case.
|
| Hydraulics |
| Type: | open center load sensing
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 3 to 5
|
| Pump flow: | 31 gpm
117.3 lpm
|
| Tractor hitch |
| Rear Type: | III*Optional
|
| Dimensions & Tires |
| Wheelbase: | 129 inches
327 cm
|
| Weight: | 26903 lbs
12203 kg
|
| Front tire: | 23.1x34
|
| Rear tire: | 23.1x34
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Batteries: | 3
|
| Battery volts: | 12
|
|
