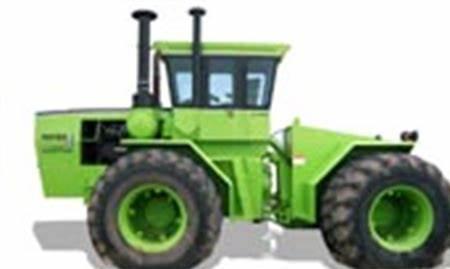

Steiger Panther III ST-350 Tractors
 |
|
Power: 350 hp
Date of manufacture : 1977 - 1981 |
| Production |
| Manufacturer: | Steiger
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $94,700 (1981)
|
| Steiger Panther III ST-350 Power |
| Engine: | 350 hp
261.0 kW
|
| Drawbar (claimed): | 311 hp
231.9 kW
|
| Steiger Panther III ST-350 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic disc
|
| Cab: | Safari Cab standard with heat and air-conditioning.
|
| Transmissions: | 10-speed
|
| | 20-speed
|
| Capacity |
| Fuel: | 267 gal
1010.6 L
|
| Hydraulic system: | 33 gal
124.9 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 33 gal
124.9 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 4
|
| Pump flow: | 30.1 gpm
113.9 lpm
|
| Tractor hitch |
| Rear Type: | 3
|
| Dimensions & Tires |
| Wheelbase: | 128 inches
325 cm
|
| Weight: | 26,700 lbs
12111 kg
|
| Front tire: | 20.8-34
|
| Rear tire: | 20.8-34
|
| Full dimensions and tires ... |
| Panther III ST-350 Serial Numbers |
| 1977: | 139-00001
|
| 1978: | 139-00011
|
| 1979: | 139-00031
|
| 1980: | 139-00061
|
| 1981: | 139-00069
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 90
|
| Batteries: | 2
|
| Battery volts: | 12
|
| Battery AH: | 208
|
| Battery Group: | 8D
|
|
