Navigation: Home > Steyr > 4105 Multi

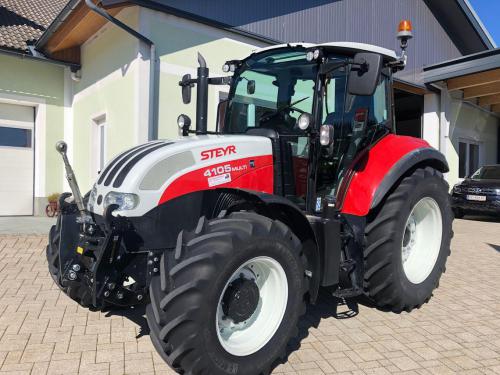

Steyr 4105 Multi Tractors

Steyr 4105 Multi
Power: 107 hp
Date of manufacture :
2013 - 2015
Production
Manufacturer:Steyr
Type:Utility tractor
Factory:Saint Valentin, Austria
Steyr 4105 Multi Power
Engine (gross):107 hp
79.8 kW
Steyr 4105 Multi Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:electro-hydraulic
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmission:32-speed four-speed power shift
Hydraulics
Type:open center
 closed center load-sensing*Optional
Rear valves:4 (max)
Mid valves:2 (max)
Pump flow:15.85 gpm
60.0 lpm
 26.4 gpm
99.9 lpm *Optional, with closed center system.
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000/1000E
Engine RPM:540@1805
540E@1542
1000@1880
1000E@1606
Front PTO:independent*Optional
Front RPM:1000
Engine RPM:1000@1920
Dimensions & Tires
Wheelbase:95.3 inches
242 cm
Weight:9921 lbs
4500 kg
Front tire:480/65R24
Rear tire:540/65R38
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
