Navigation: Home > Steyr > 4110 Profi CVT

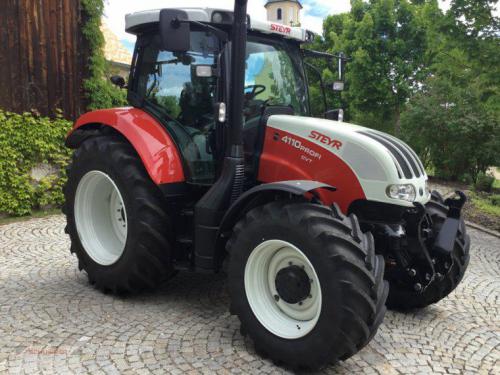

Steyr 4110 Profi CVT Tractors
 |
|
Power: 121 hp
Date of manufacture : 2012 - 2015 |
| Production |
| Manufacturer: | Steyr
|
| Type: | Utility tractor
|
| Variants |
| 4110 Profi: | standard
|
| 4110 Classic: | economy
|
| 4110 CVT: | continuously-variable transmission
|
| Steyr 4110 Profi CVT Power |
| Engine (gross): | 121 hp
90.2 kW
|
| Engine (max): | 143 hp
106.6 kW
|
| Steyr 4110 Profi CVT Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | pneumatic*Optional
|
| | hydraulic*Optional
|
| Cab: | Steyr SK3 cab standard with air-conditioning.
|
| Transmission: | continuously variable transmission (CVT)
|
| Hydraulics |
| Type: | closed center load sensing
|
| Valves: | 4 (max)
|
| Pump flow: | 33 gpm
124.9 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift: | 17337 lbs
7864 kg
|
| Front lift: | 6834 lbs
3099 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/540E/1000
|
| Engine RPM: | 540@1969
540E@1546
1000@1893
|
| Front PTO: | independent
|
| Front RPM: | 1000
|
| Engine RPM: | 1000@1893
|
| Dimensions & Tires |
| Wheelbase: | 94.6 inches
240 cm
|
| | 96.6 inches
245 cm *With suspended front axle.
|
| Weight: | 11001 lbs
4990 kg
|
| Front tire: | 480/65R28
|
| Rear tire: | 600/65R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | electric
|
| Charging system: | alternator
|
|
