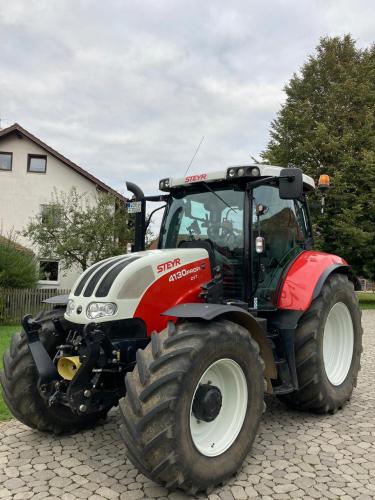

Steyr 4130 Profi Tractors
 |
|
Power: 132 hp
Date of manufacture : 2007 - 2015 |
| Production |
| Manufacturer: | Steyr
|
| Type: | Utility tractor
|
| Steyr 4130 Profi Power |
| Engine (gross): | 132 hp
98.4 kW
|
| Engine (max): | 152 hp
113.3 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | pneumatic*Optional
|
| | hydraulic*Optional
|
| Cab: | Steyr SK3 cab standard with air-conditioning.
|
| Transmissions: | 16-speed four-speed power shift
|
| | 32-speed
|
| Hydraulics |
| Type: | closed center load sensing
|
| Valves: | 4 (max)
|
| Pump flow: | 29.85 gpm
113.0 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift: | 13708 lbs
6217 kg
|
| Front lift: | 8157 lbs
3700 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E/1000 (1.375)
|
| Engine RPM: | 540@1969
540E@1546
1000@2120
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000
|
| Engine RPM: | 1000@2120
|
| Dimensions & Tires |
| Wheelbase: | 95 inches
241 cm
|
| Weight: | 10626 lbs
4819 kg
|
| Front tire: | 14.9R24
|
| Rear tire: | 16.9R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | electric
|
| Charging system: | alternator
|
|
