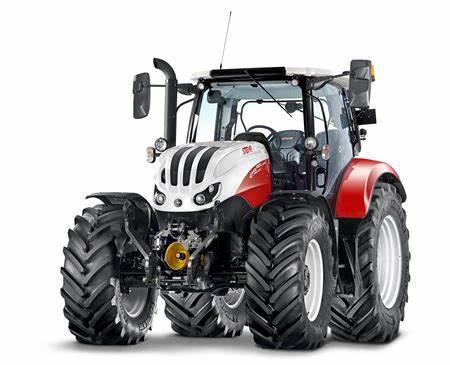

Steyr 4135 Profi Tractors
 |
|
Power: 135 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | Steyr
|
| Type: | Utility tractor
|
| Variants |
| 4135 Profi: | premium
|
| 4135 Classic: | economy
|
| 4135 CVT: | continuously-variable transmission
|
| Steyr 4135 Profi Power |
| Engine (gross): | 135 hp
100.7 kW
|
| Engine (max): | 169 hp
126.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | pneumatic*Optional
|
| Cab: | Cab standard with air-conditioning. Optional active suspension.
|
| Transmissions: | 16-speed four-speed power shift
|
| | 32-speed creeper
|
| | 17-speed
|
| Hydraulics |
| Type: | closed center load sensing
|
| Rear valves: | 4 (max)
|
| Mid valves: | 2 (max)
|
| Pump flow: | 29.85 gpm
113.0 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift: | 17337 lbs
7864 kg
|
| Front lift: | 6834 lbs
3099 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/540E/1000
|
| | 540E/1000:1000E
|
| Engine RPM: | 540@1969
540E@1546
1000@1893
1000E@1621
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000
|
| Engine RPM: | 1000@1895
|
| Dimensions & Tires |
| Wheelbase: | 104.2 inches
264 cm
|
| | 105.7 inches
268 cm *With suspended front axle.
|
| Weight: | 10781 lbs
4890 kg
|
| Front tire: | 480/65R28
|
| Rear tire: | 600/65R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | electric
|
| Charging system: | alternator
|
|
