Steyr 6160 CVT Tractors

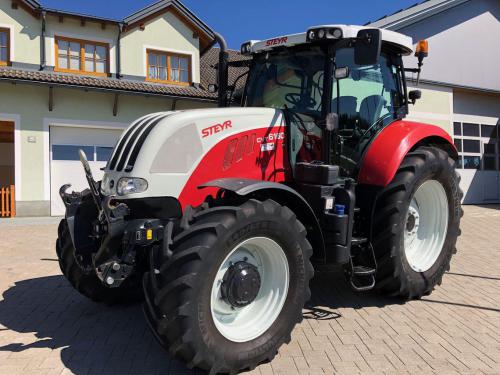

Steyr 6160 CVT
Power: 160 hp
Date of manufacture :
2007 - 2012
Production
Manufacturer:Steyr
Type:Utility tractor
Steyr 6160 CVT Power
Engine (gross):160 hp
119.3 kW
Engine (max):183 hp
136.5 kW
Steyr 6160 CVT Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Trailer brakes:pneumatic*Optional
 hydraulic*Optional
Cab:Steyr luxury cab standard with air-conditioning.
Transmission:continuously variable transmission (CVT)
Hydraulics
Valves:8 (max)
Pump flow:27.7 gpm
104.8 lpm
Tractor hitch
Rear Type:III/II
Rear lift:21830 lbs
9902 kg
Front lift:8822 lbs
4001 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000/1000E (1.375)
Engine RPM:540@1878
540E@1608
1000@1869
1000E@1600
Front PTO:independent*Optional
Front RPM:1000
Dimensions & Tires
Wheelbase:110.5 inches
280 cm
Weight:14308 lbs
6490 kg
Front tire:540/65
Rear tire:650/65
Full dimensions and tires ...
Electrical
Ground:electric
Charging system:alternator
