| Production |
| Manufacturer: | Steyr
|
| Type: | Utility tractor
|

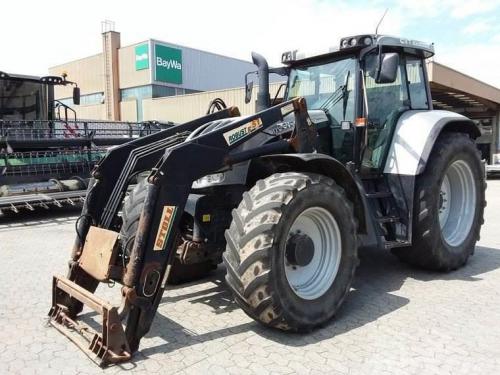

| Steyr 6170 CVT Power |
| Engine: | 171 hp
127.5 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | STEYR luxury cab
|
| Transmission: | continuously variable transmission (CVT)
|
| Hydraulics |
| Pressure: | 2973 psi
205.0 bar
|
| Valves: | 5
|
| Total flow: | 34.3 gpm
129.8 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift: | 21,830 lbs
9902 kg
|
| Front lift: | 8,822 lbs
4001 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/540E/1000/1000E
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 111.5 inches
283 cm
|
| Weight: | 14,930 lbs
6772 kg
|
| Front tire: | 540/65R28
|
| Rear tire: | 650/65R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
|
