Steyr 9078 Tractors

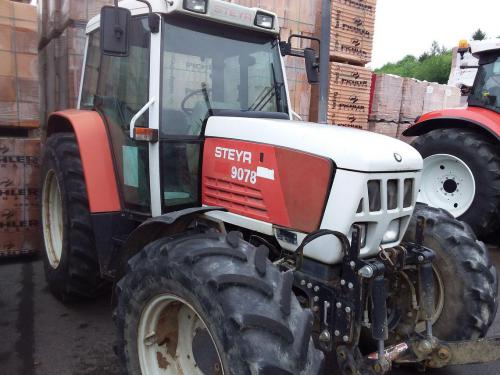

Steyr 9078
Power: 78 hp
Date of manufacture :
1993 - 1995
Production
Manufacturer:Steyr
Type:Row-Crop tractor
Variants
9078a:4WD
Steyr 9078 Power
Engine:78 hp
58.2 kW
PTO (claimed):72 hp
53.7 kW
Steyr 9078 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Trailer brakes:hydraulic*Optional
 pneumatic*Optional
Cab:Cab standard with heat. Air-conditioning optional.
Transmissions:16-speed synchronized
 16-speed
Hydraulics
Pressure:2538 psi
175.0 bar
Pump flow:13.2 gpm
50.0 lpm
 25.4 gpm
96.1 lpm *Optional
Total flow:28.3 gpm
107.1 lpm
 40.4 gpm
152.9 lpm *Optional
Tractor hitch
Rear lift:9922.5 lbs
4500 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Engine RPM:390@1933
540@2045
540E@1506
1000@2130
Front PTO:optional
Front RPM:1000
Engine RPM:1000@1933
Dimensions & Tires
2WD Wheelbase:95.3 inches
242 cm
4WD Wheelbase:97.5 inches
247 cm
Weight:7430 to 8311 pounds
Front tire:9.00-16
2WD Rear tire:16.9-36
Full dimensions and tires ...
