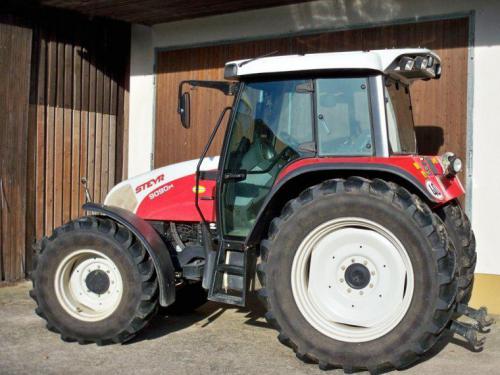

Steyr 9090M Tractors

Steyr 9090M
Power: 89 hp
Date of manufacture :
2003 - 2007
Production
Manufacturer:Steyr
Type:Utility tractor
Steyr 9090M Power
Engine:89 hp
66.4 kW
Steyr 9090M Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Supercomfort cab
Transmissions:16-speed
 32-speed
Hydraulics
Pressure:2538 psi
175.0 bar
Valves:4
Total flow:13.2 gpm
50.0 lpm
 22.7 gpm
85.9 lpm *Optional
Tractor hitch
Rear lift:10,800 lbs
4898 kg
Front lift:6,698 lbs
3038 kg
Power Take-off (PTO)
Rear RPM:430/540/540E/1000
Front RPM:1000
Dimensions & Tires
Wheelbase:97.7 inches
248 cm
Weight:8,708 lbs
3949 kg
Front tire:14.9R24
Rear tire:18.4R34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
