Terrion ATM 4200 Tractors

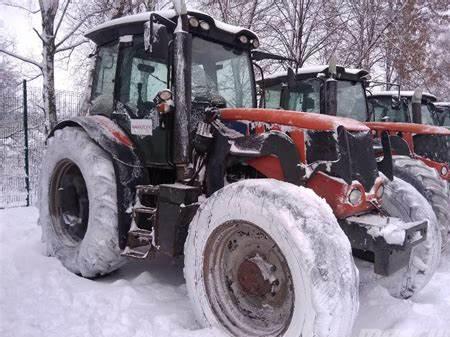

Terrion ATM 4200
Power: 197 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Terrion
Type:Row-Crop tractor
Factory:Tambov, Russia
Terrion ATM 4200 Power
Engine:197 hp
146.9 kW
Terrion ATM 4200 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Cab:Cab standard with air-condtioning.
Transmission:40-speed four-speed power shift
Hydraulics
Valves:4
Pump flow:29.1 gpm
110.1 lpm
 39.6 gpm
149.9 lpm *Optional
Tractor hitch
Rear Type:III
Control:position and draft control
Front Hitch:IIIN*Optional
Power Take-off (PTO)
Rear RPM:540/540E/1000/1000E
Front PTO:optional
Front RPM:1000
Dimensions & Tires
Wheelbase:113 inches
287 cm
Weight:14990 lbs
6799 kg
Front tire:420/85R34
Rear tire:520/85R42
Full dimensions and tires ...
