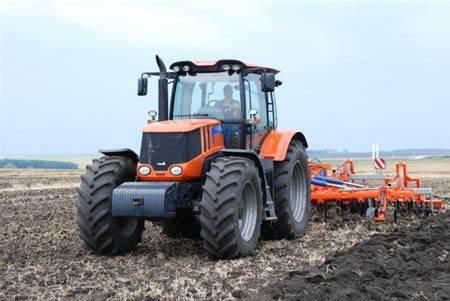

Terrion ATM 5280 Tractors
 |
|
Power: 275 hp
Date of manufacture : 2008 - 2018 |
| Production |
| Manufacturer: | Terrion
|
| Type: | Row-Crop tractor
|
| Factory: | Tambov, Russia
|
| Terrion ATM 5280 Power |
| Engine: | 275 hp
205.1 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Cab: | Cab standard with air-condtioning.
|
| Transmission: | 40-speed four-speed power shift
|
| Hydraulics |
| Valves: | 5
|
| Pump flow: | 29.1 gpm
110.1 lpm
|
| | 39.6 gpm
149.9 lpm *Optional
|
| Tractor hitch |
| Rear Type: | III
|
| Control: | position and draft control
|
| Rear lift: | 23600 lbs
10704 kg
|
| Front Hitch: | IIIN*Optional
|
| Front lift: | 12140 lbs
5506 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540E/1000
|
| Front PTO: | optional
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 120.9 inches
307 cm
|
| Weight: | 20280 lbs
9199 kg
|
| Front tire: | 600/65R38
|
| Rear tire: | 710/70R42
|
| Full dimensions and tires ... | |
