Navigation: Home > UTB/Universal > 530

UTB/Universal 530 Tractors

UTB/Universal 530
Power: 53 hp
Date of manufacture :
1982 - 1985
Production
Manufacturer:UTB/Universal
Factory:Brasov, Romania
Original price:$19,000 (1985 )
Variants
530DT:4WD
UTB/Universal 530 Power
Engine:53 hp
39.5 kW
PTO (claimed):50 hp
37.3 kW
UTB/Universal 530 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:dry band
Cab:ROPS. Cab optional.
Transmissions:12-speed constant mesh
 8-speed shuttle
Photos

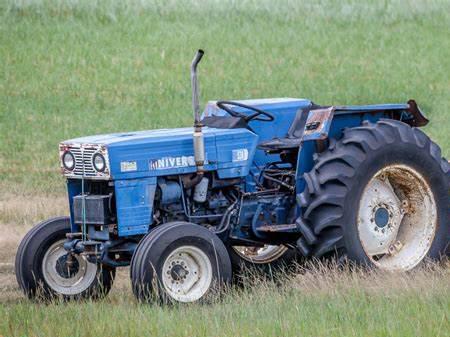

UTB/Universal 530 photos...
Hydraulics
Type:open center
Valves:1
Pump flow:9.1 gpm
34.4 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift:2650 lbs
1202 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
Dimensions & Tires
Wheelbase:77.1 inches
195 cm
Weight:4000 to 4800 pounds
Front tire:7.50-16
Rear tire:12.4-36
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
