UTB/Universal 532 Tractors
|
|
Power: 53 hp
Date of manufacture : 1985 - 1988 |
Production |
Manufacturer: | UTB/Universal
|
Factory: | Brasov, Romania
|
UTB/Universal 532 Power |
Engine: | 53 hp 39.5 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Differential lock: | mechanical rear
|
Steering: | power
|
Brakes: | hydraulic band
|
Cab: | Cab standard.
|
Transmissions: | 8-speed partially synchronized
|
| 12-speed creeper
|

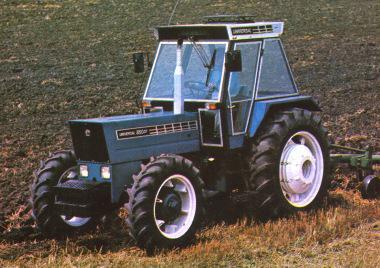

Photos |
| UTB/Universal 532 photos... |
Hydraulics |
Pressure: | 2176 psi 150.0 bar
|
Pump flow: | 8.2 gpm 31.0 lpm
|
Tractor hitch |
Rear Type: | II/I
|
Control: | position and draft control
|
Rear lift: | 3822 lbs 1733 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 78.8 inches 200 cm
|
Weight: | 5842 to 6393 pounds
|
Front tire: | 6.00-16
|
2WD Rear tire: | 14.9-28
|
Full dimensions and tires ... |
Electrical |
Ground: | negative
|
Battery volts: | 12
|
|
