Navigation: Home > UTB/Universal > 640

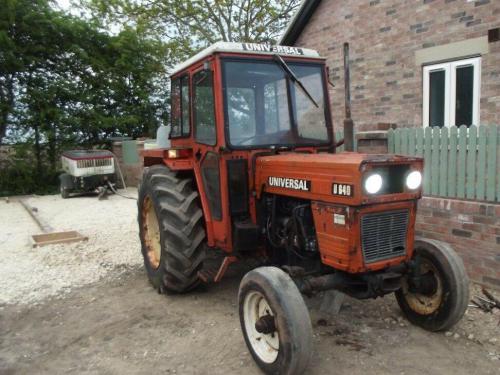

UTB/Universal 640 Tractors
 |
|
Power: 65 hp
Date of manufacture : 1983 - 1985 |
| Production |
| Manufacturer: | UTB/Universal
|
| Factory: | Brasov, Romania
|
| Original price: | $20,000 (1985)
|
| Variants |
| U-640: | 2WD
|
| U-640DTC: | 4WD
|
| U-640SD: | 2WD shuttle
|
| U-640DTC-SD: | 4WD shuttle
|
| U-640DTCE: | 4WD equal-size wheels
|
| U-640L: | high-clearance
|
| S640: | crawler
|
| UTB/Universal 640 Power |
| Engine: | 65 hp
48.5 kW
|
| PTO (claimed): | 62 hp
46.2 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | hydrostatic power
|
| Brakes: | dry band
|
| Cab: | ROPS. Cab optional.
|
| Transmissions: | 12-speed constant mesh
|
| | 8-speed shuttle
|
| Photos |
| | UTB/Universal 640 photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 1
|
| Pump flow: | 10.8 gpm
40.9 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 4630 lbs
2100 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| 2WD Wheelbase: | 82.6 inches
209 cm
|
| 4WD Wheelbase: | 78.3 inches
198 cm
|
| Weight: | 4400 to 5100 pounds
|
| Front tire: | 6.00x16
|
| Rear tire: | 14.9x28 (2WD)
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
