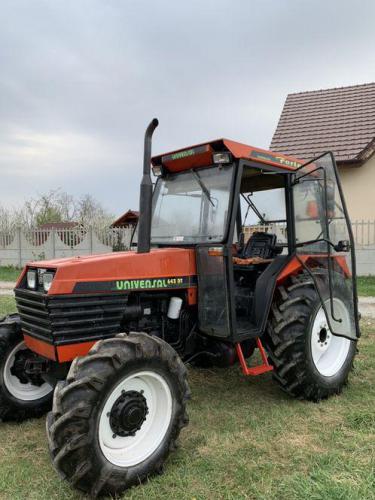

UTB/Universal 643 Tractors
|
|
Power: 64 hp
Date of manufacture : 1988 - 2004 |
Production |
Manufacturer: | UTB/Universal
|
Factory: | Brasov, Romania
|
Original price: | $25,000 (2004)
|
UTB/Universal 643 Power |
Engine: | 64 hp 47.7 kW
|
UTB/Universal 643 Engines |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Differential lock: | mechanical rear
|
Steering: | hydrostatic power
|
Brakes: | wet disc
|
Transmissions: | 8-speed constant mesh
|
| 12-speed creeper
|
| 8-speed shuttle
|
Hydraulics |
Type: | open center
|
Pressure: | 2175 psi 150.0 bar
|
Valves: | 1
|
Pump flow: | 9 gpm 34.1 lpm
|
Tractor hitch |
Rear Type: | II
|
Control: | position and draft control
|
Rear lift: | 4630 lbs 2100 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 89.37 inches 226 cm
|
Weight: | 6200 lbs 2812 kg
|
Front tire: | 11L-15
|
Rear tire: | 16.9R30
|
Full dimensions and tires ... |
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Battery volts: | 12
|
|
